Setting Mikrotik RB750 via Winbox

Posted on by
Tutorial Setting via Winbox Mikrotik RB750 – Mikrotik RB750 is Mikrotik RouterBoard one of the most widely used because it is cheap. Mikrotik RB 750 has five 10/100 Ethernet ports, the new Atheros 400MHz processor and is included with the license level 4. Unfortunately, RB750 does not have a Wireless interface, so it can not be used immediately to create a wireless hotspot. In order to create a wireless hotspot necessary to add additional devices as an Access Point.
Okay, this time  techsofcenter.com will discuss Tutorial Setting Mikrotik RB750 via Winbox from scratch. This tutorial is devoted to your new one using Mikrotik RB750 this (newbie). Okay, let Learning Mikrotik RB750 together.

How to Access Mikrotik RB750

Please turn on its RB750 Mikrotik, ether connects port 1 to a PC using a straight UTP cable. If Mikrotik Router was first turned on, the default configuration of the IP address of his ether 1 is 192.168.88.1. Please, you replace your PC ethernet IP address to 192.168.88.2. If you already have access Mikrotik with Winbox, putty, telnet, or webfig. The trick please read this article 4 ways to access Mikrotik. But I suggest you use to access Mikrotik RB750 Winbox it so much easier. Please, you Download Winbox Mikrotik here.
But if you want to try to access its Mikrotik RB750 using the base text, eg using ssh (putty) or telnet you can learn the basic commands that are often used in Mikrotik Here are Basic Mikrotik RouterOS Commands.

Setting Mikrotik RB750 for Internet Speedy

Here is how Setting Mikrotik RB750 with Speedy Internet connection. Here dial to it’s Speedy directly from Mikrotik, do not use an ADSL modem.
1. Please set your ADSL Modem mode to ‘BRIDGE’, so if you still mode ‘PPPoE’ please ‘RESET’ and resetting the modem.
2. Reset also Mikrotik RB750 her when growing or using the default settings the default Mikrotik. Here’s how:

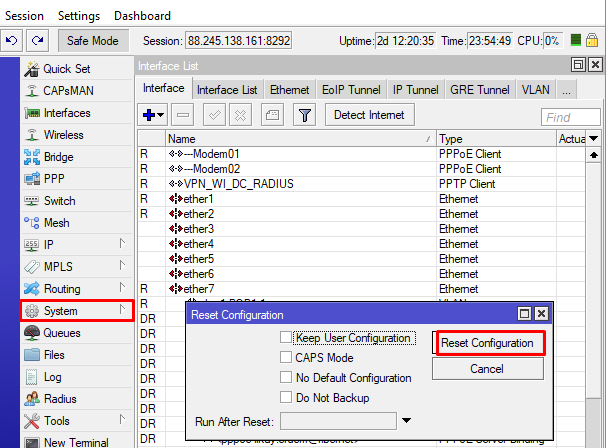

– In Winbox Select Menu System -> Reset Configuration -> Reset Configuration
– Reboot Mikrotik
3. Next, we start with the Log In Winbox and choose the Mac Address (Do IP Address) for connection to Mikrotik.
4. Change its name Interface
In Winbox Select Menu Interface
Click [+] click 2x ether1 Name = Speedy
Click [+] click 2x ether2 Name = Local
5. Change IP Address Mikrotik
In Winbox Select Menu New Terminal, type:/ ip address
Copy-Paste the following code:

6. Adding PPP – PPPoE Client
On Winbox Select Menu PPP – click the [+] – PPPoE Client
General Tab Name = ppp-speedy1 Interfaces = Speedy
Tab Dial Out Internet Service = User = **** *** 2 ** 01 @ telkom.net (Username Speedy) Password = (Password Speedy) Profile = Default Checklist on Menuan Select ‘Add Default Route & User Peer DNS’, select Allow Checklist Menuan all, OK.
7. Adding DNS
On Select Menu Winbox IP -> DNS -> Setting
If the DNS server has emerged, just give a checklist on Select Menuan ‘Allow Remote Requests’, OK
Also, use the DNS Server to PC Client Billing & your PC

For more details about the DNS please read this article How to Configure DNS Server Mikrotik.



8. Changing TCP / IP PC-BILLING / PC CLIENT
Setting first PC / computer used for the installation process your proxy. Here’s how:
Go to Control Panel – Network Connections – Local Area Connection – Right click and select Menu Properties – Internet Protocol (TCP / IP) – Properties.
Use the Following IP Address: IP Address = 192.168.0.2 Subnet Mask = 255.255.255.0 Gateway = 192.168.0.1
Use the Following DNS Server Addresses: Use DNS Server and Alternate DNS Server that exist in Tadi DNS settings.
setting Mangle TCP / UDP port



9. Changing the Time Zone on NTP
For some RouterBoard / MikroTik not use battery CMOS, so that the time zone RouterBoard / MikroTik running normally then should we setting.
In Winbox Select Menu System -> NTP Client
For more details please see here What is NTP? Setting NTP client in Mikrotik.



10. Adding Firewall configuration NAT (Network Address Translation)
In Winbox Select Menu IP -> Firewall -> NAT tab or open the New Terminal and type:

Mikrotik RB750 Up here you should be able to connect to the Internet, please try to do in his Mikrotik and try browsing of PC Client. If successful means Settings are correct.
Okay, that was Settings Mikrotik RB750 basis for a connection to Speedy.
