PPPoE Server Configuration in MikroTik Router

Go to IP > Pool menu and click on add new button. New IP Pool window will appear now. Put Name: PPOE_POOL and Addresses: 192.168.2.2-192.168.2.254 in the New IP Pool window and click Apply and OK button. When a user will purchase a 512kbps connection, he/she will get an IP from this IP address range.



PPPoE Server Configuration in MikroTik Router
PPPoE Server Configuration in MikroTik Router



PPPoE Server Configuration in MikroTik Router
PPPoE Server Configuration in MikroTik Router

Go to IP > Firewall menu and snap on add new button. New nat rule window will show up now.

Go to IP > Firewall menu and click on add new button. New action masquerade window will appear now.



PPPoE Server Configuration in MikroTik Router
PPPoE Server Configuration in MikroTik Router



Now we’ll configure our PPPoE server in MikroTik router. Follow below steps carefully for proper PPPoE server configuration in the MikroTik router.

Click on PPP menu item from the left menu. PPP window will appear now. Choose the PPPoE Server. In the event that you need, you can change your interface name or keep it default. Click Apply and OK button.
Now click on PPPoE Servers tab and then click add new button. New PPPoE Service window will appear now. In this window, put your PPPoE server name as you like in Service Name input box.

Presently pick your LAN interface where PPPoE server will be made from Interface drop-down menu. In the event that you make connect interface, your extension interface will be accessible in this rundown. In this way, pick connect interface on the off chance that you need to make PPPoE server in your extension interface.



PPPoE Server Configuration in MikroTik Router
PPPoE Server Configuration in MikroTik Router



Click on One Session Per Host If you left it blank, multiple host/devices can be connected with the same username and password. Obviously, you don’t want it.

At the bottom of this window, you can see there are 4 authentication methods. Here only select PAP, and unselect all others. Now click Apply and OK



PPPoE Server Configuration in MikroTik Router
PPPoE Server Configuration in MikroTik Router



Select a PPP profile and set the limit to 100MB / 100MB, giving the desired value.



PPPoE Server Configuration in MikroTik Router
PPPoE Server Configuration in MikroTik Router

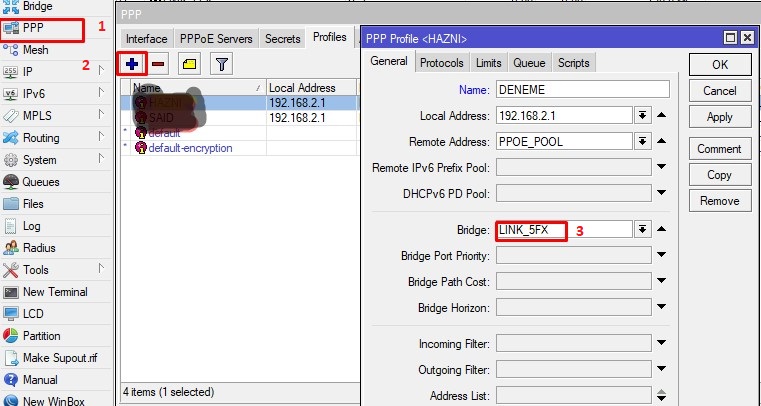

PPP menu from MikroTik menu bar and then click on the Profiles tab. You will see already two default profiles are created by MikroTik. We will do nothing these default profiles. We will create a new profile here. For this, click on add new button. New PPP Profile window will appear now.
In New PPP Profile window, put your profile name as you, I am using. Now put Local Address: 192.168.2.1



PPPoE Server Configuration in MikroTik Router
PPPoE Server Configuration in MikroTik Router



I hope it has been a useful article.
