How to Make Voucher Hotspot Mikrotik via User Manager

Make use Voucher Hotspot Mikrotik User Manager is quite complicated. Many things must be configured to be able to generate Voucher Hotspot Mikrotik Mikrotik in the User Manager. By using a voucher system, we can more easily in selling Internet connection via WiFi Hotspot Mikrotik to customers. We do not need to add the user each time a customer wants to subscribe to a WiFi Hotspot. We stayed to generate username and user password automatically, and print it in the form of vouchers to be sold to customers.
Now the question is How to Make Voucher Hotspot Mikrotik? To answer these questions, see good MikrotikNetworking this time yes.
Before we begin Tutorial Mikrotik it, make sure the following points are met:

1. Make sure you’ve Mikrotik can connect to the Internet

If you have not read here:

2. Setting Time in Mikrotik using NTP Client

Read here:

3. Make sure the Mikrotik Hotspot is installed and running properly

Read here:

4. Install Mikrotik User Manager

Please read here:

5. Setting Mikrotik Hotspot in order to use the User Management of User Manager Mikrotik

Read here:

6. From this, I assume you are connected to Mikrotik User Manager properly

Tutorial How to Make Voucher Hotspot Mikrotik via User Manager

1. Login to User Manager Mikrotik

Enter IPAddressMikrotik / userman on the browser. Make sure the IP Address is not the IP Address used to interface Hotspot. If you are using IPAddressHotspot / userman message appears Error Not Found. You can use other interfaces, such as ether1 and given IP segments in addition to the hotspot.

2. Setting the Users Variable Mikrotik User Manager

Once logged in, go to Settings -> Appearance -> At the Table column select Users. Enter the following variables into visible columns:
Username
Password
Start Time
End Time
Total Time Left
Till Time
Uptime Used
Uptime Limit
Money Paid

This variable will appear on the menu users so that we can know the user details with ease.

Make Voucher Hotspot Mikrotik via User Manager
Make Voucher Hotspot Mikrotik via User Manager

3. Creating a User Profile in User Manager Mikrotik

These profiles contain user profile information from each Package Hotspot will we sell. We can add the user profile as an internet package that we will create. How to create a user profile can Profiles manually via the menu, but I would be demonstrated to make the semi-automatic using the command in the Terminal in Winbox. Here’s an example command it:
Please adjust these parameters on the command to your liking. Especially the owner parameter, replace it with the username User Manager. The results of the command you can see on the menu Profiles in User Manager. If There are no changes to the menu profiles, please logout and login again to the User Manager.
Shared Users can also specify their amount.
Seting Profile User Manager
Setting Profile User Manager

4. Make Hotspot Mikrotik on User Package Manager

Profile that was made before need to be added to the bandwidth limitations and the duration of its active accounts. You do this by adding a limitation on the profile. You can make one by one in the menu Profile -> tab Limitations.
Here I will use again command winbox terminal.
Examples of command are as follows:
Please adjust parameters on the command needs your Package. The following information on each of his command parameter:
download-limit : quota limit download
upload-limit : quota limit upload
transfer-limit : quota limit download + upload
rate-limit-tx : speed limit download (if the quota has been exhausted)
rate-limit-rx : speed limit upload (if quota is up)
rate-limit-min-tx : download speed limit (if the quota has been exhausted)
rate-limit-min-rx : upload speed limit (if the quota has been exhausted)
download-limit = 0B : unlimited download quota
rate-limit- tx = 262144B : 256 kbps download speed limit
Her results are as follows:
Seting Profile Limitations
Setting Profile Limitations

5. Limitation Connecting with User Profiles Manager Mikrotik

Once the limitation is made, then stay connected just with his Profile. You do this by going to Menu Profiles -> Select Profile -> Add new limitation -> Select limitation according to its package -> Click Add .
Do the same for the other Profile.
Add Limitation to Profile
Add Limitation to Profile

6. Men-Generate Username and Password for the account of each Package

To create an account automatically on each package, we could take advantage of user Batch feature on the menu Users -> Add -> Batch -> specify the number of users who want to be generated in the column Number of users -> Select Package – > Add.
Batch Add Users
Batch Add Users
Do the same for other hotspots package. The results are as follows:
Batch Add Users Result
Batch Add Users Result

7. Adding Logo on User Manager Mikrotik

Actually, this step is optional, you can skip it if do not want to replace the logo User Manager him. However, the Voucher that will be created later No logo imprinted, so we need to upload a logo. You do this by accessing the FTP Mikrotik.
Create a new folder with the name umfiles, copy the logo file into the folder.
Upload Logo
Upload Logo
To replace the logo user manager, go to Menu Settings -> Styles -> Edit path column Logo Logo with the path that has been uploaded -> Save

8. Creating a Template Voucher Hotspot on User Manager

Still on the Menu Settings -> move to the tab Templates -> select Vouchers. Voucher Template Mikrotik Hotspot is divided into four parts, namely Header, Row, Footer, and Break. The part we will edit only in the Header and Row alone.
Here’s an example of HTML code that has been in the custom.
Voucher code HTML for the Header:
Voucher code HTML for Row:
The HTML code is only an example, please edit your own appropriate as needed. You can use Notepad ++ applications or Dreamweaver to edit the code.
Template Menu
Template Menu

9. Meng-Generate Voucher Hotspot Mikrotik

Furthermore, we live to automatically generate its proxy hotspot vouchers. Do I go to Menu Users -> Select the user who will be 4 in the Generate -> Generate -> Vouchers -> Click Generate.
Generate Voucher
Generate Voucher
Why only 4 users in check? Why do not all just all generated? You could try to generate all together. Later you will be difficulties during the process of printing (print) voucher. Because if it is too much, to see her voucher will cut pages. So in order to secure it, we generate 4 consecutive away.
If after the click Generate nothing happens, try clicking the blue following article:
Click Popup
Click Popup
Mikrotik Hotspot Voucher display will appear in a popup browser.

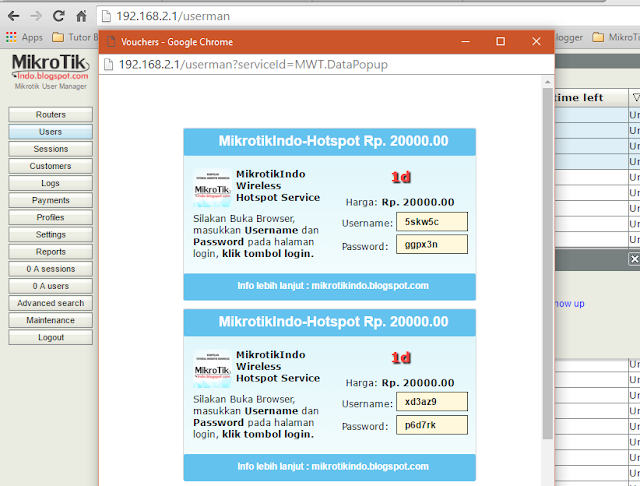

Voucher Generate Results
Voucher Generate Results

10. Printing (Print) Voucher Hotspot Mikrotik Generate Results

On page popup browser containing hotspot voucher Mikrotik, press Ctrl + p to start printing (print). I suggest using the Google Chrome Browser Generate and print during the process so much easier.
Print Voucher
Print Voucher
Click More Settings -> Options check on the background graphics and uncheck Headers and Footers. If the option Background graphics is not in check, then the print view would be odd for the background color of its opt printed. Now living alone print, and repeat the same thing to another account voucher that has not been generated.
Template Hotspot Mikrotik If this is too complicated, you can try using Template Hotspot Mikrotik who live to print any of the following:
Download Template Voucher Hotspot Mikrotik
