Enterasys – How to Install Switch Firmware?

In this article, we will see how to install new firmware on Enterasys switches whose system is damaged or not connected via the serial port.

Let’s say first, Enterasys was purchased by the Extreme Network. Therefore, technical support is now provided by Extreme Network.

Before starting the processes, we can download the required firmware software in the link below and make the necessary membership processes and download it from here.

https://extranet.extremenetworks.com/downloads/pages/default.aspx

In the method described here, the necessary installation will be made using COM PORT using XMODEM. You can apply what is described in this article on C5-Series, C3-Series, C2-Series, B5-Series, B3-Series, B2-Series, A4-Series, A2-Series switches and get results.

If you do not have the hardware standard console cable and the internal COM port, a USB-rs232 converter is required. Tera Term, which is a software that I will transfer to software, will see our work more.

First, download the Tera Term application and install it on your computer. Then, connect it to your computer from the console connection of the switch with the USB com converter.

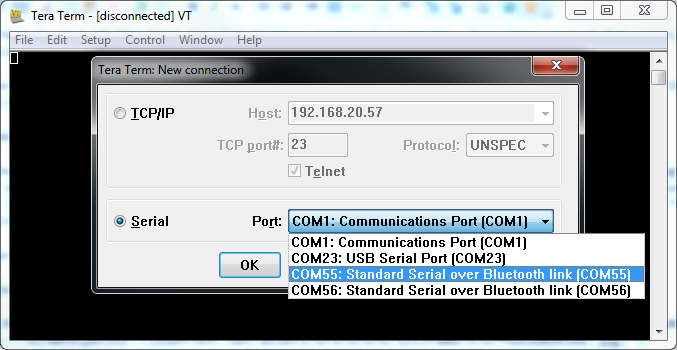

Open the Tera Term application and select Serial from the New connection window that comes up and selects the corresponding COM port from the Port section.

teraterm_com_connect
teraterm_com_connect

After this process, energize the Switch and wait for it to open from the Tera Term program. When the following menu is displayed, write “2” and press enter. If you lose time and miss this menu, power off the switch and repeat the same process.

Since the “Start Boot Menu” is software running outside of the operating system, even if the system crashes, this menu will come on boot, so this menu works independently from the system.

When you enter the boot menu, you will see the above options. Here, we will increase the communication speed to finish our transactions fast.

For this process;

Selecting the above option, press 2 to continue with entering.

Select the “8- 115200” option from this menu and press Y which means yes.

Our Switch, which was later actively connected with Tera Term, does not work at first because 9600 Bounds it was initially selected. Now we will adjust the settings of the application as you see in the picture below

Tera Term

Setup -> Serial Port…

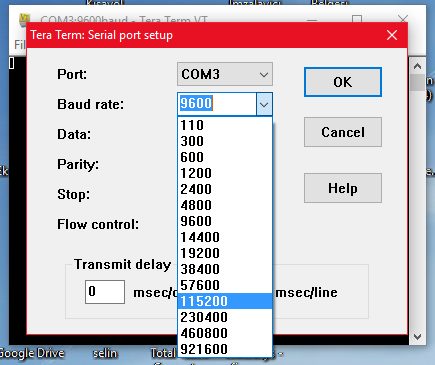

Change the Bound rate value to 115200 in the window that opens.

tera-term seri Port Setup-Bound rate
tera-term Seri Port Setup-Bound rate

Let’s continue by pressing the “Ok” button.

When you return to the console screen, press the Direct 4 key because you are already in the boot menu. By pressing the 4 buttons, we will select the following option.

Next came the XMODEM protocol to download the firmware file.

Select the following menu in Tera Term Application

File-> TRANSFER> XMODEM-> syndrome have an> Browse-> Open

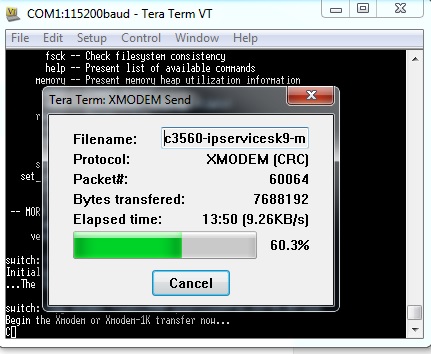

Select the firmware file in the window that opens. You will see the process done as below.

xmodem
xmodem

The upload may take a little longer. Therefore, do not try to stop the process.

When finished, set the bound rate to 9600 and restart the switch. The switch will be opened with the new firmware.

In addition, if you want to delete everything from a switch you forgot your password if you enter the boot menu and use the option “10 - Restore Configuration to factory defaults (delete config files)“, you will delete all Configuration settings.
